Honda Civic Type R Spitter and Dam MOUNTING Kit Civic Cup Spec EP3

Regular price £195.00 Sale


These are proper splitters kits that mount to the chassis at the correct angle and generate actual downforce! They are NOT just fastened to the front bumper for looks!

This kit includes;

  • Laser Cut & Folded Front Splitter Mount
  • Replacement (Billet) Wishbone Bolts (incorporating the rear splitter mounts.)
  • Laser cut and folded Air Dam (80mm high) with built in 'L' Brackets
  • End brackets to fit once dam is cut
  • All hardware and fasteners

Items are raw finish (aluminium/steel etc.) but look great if you paint black!

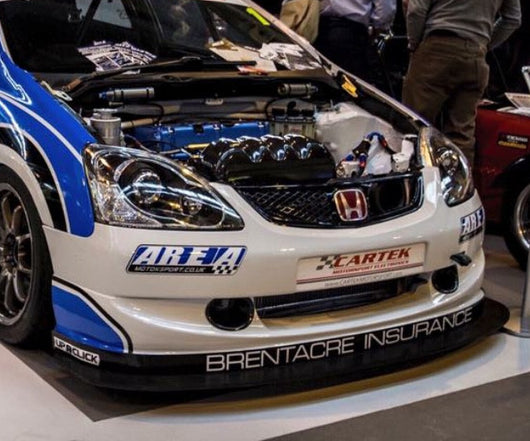

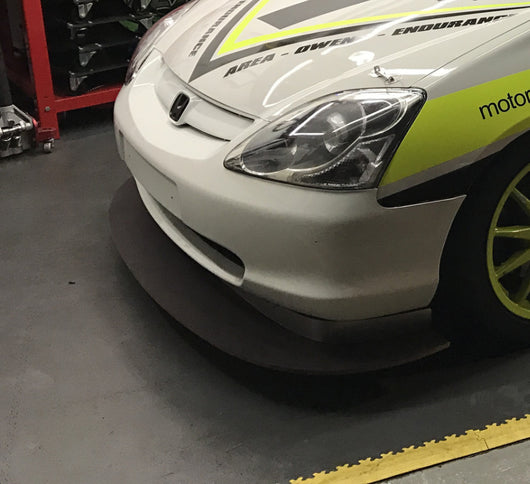

All of the pictures on this listing use this kit.

Splitter boards are to be made from 12mm RIGID Buffalo board and must not overhang the front of the bumper more than 50mm without additional supports.

Do not run this on a car that is so low that this makes contact with the floor or curbs under cornering. it is made to withstand pressure downwards not upwards!

Fitting (Mechanical experience and tools required!!!);

  1. Remove the front bumper
  2. Remove the left and right lower crash protectors
  3. Replace the front wishbone bolts with the ones supplied
  4. Fasten the front splitter mount to the M8 holes where the lower crash structures were.
  5. Make and lift your splitter up, fix the rear with some M10x30mm Bolts and washers
  6. Mark the front mount holes (USE ALL HOLES!)
  7. Remove your splitter and drill the holes
  8. Re attach and bolt the front mount to the splitter using the coach bolts.
  9. Trim Bumper if needed (depends on type).
  10. Mark the air dam location so it is as tight up as possible to the bumper
  11. Remove bumper or remove the splitter
  12. Screw dam to the splitter (1/2" long screws)
  13. Trim the dam ends to match the splitter (sheet metal shears or grinder)
  14. Fit the stainless steel end brackets.
  15. Re-fit the bumper (or splitter).
