Centre Hub - Modular Steering Assembly

Regular price £15.00 Sale

This is the heart of the modular steering component design.

Our centre hub sandwiches between your steering wheel and quick release mechanism/steering column and facilitates the attachment of our accessories for buttons, warning lights / dashes and displays.

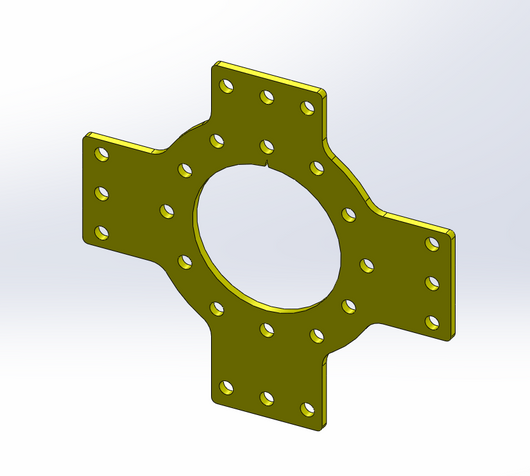

70 & 76mm PCD 6 hole fitting covers almost all 6 bolt steering wheels.

The bottom and side attachment stalks are slightly longer than the top stalk to allow clearance of the bolts on dished steering wheels.

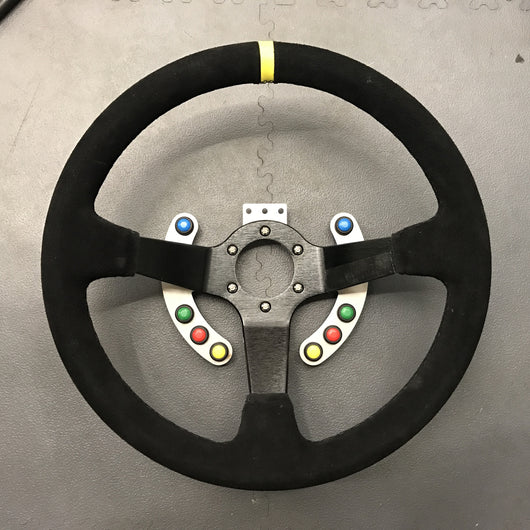

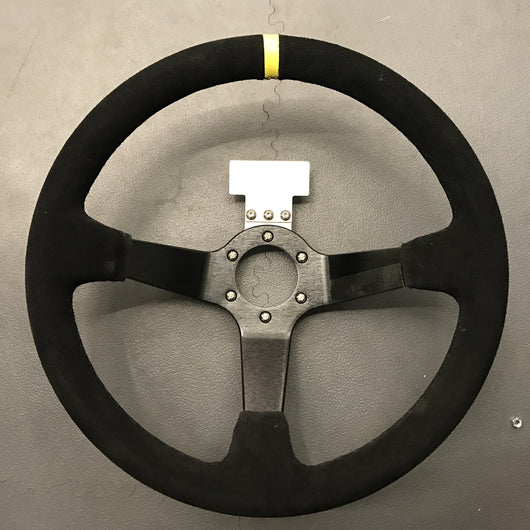

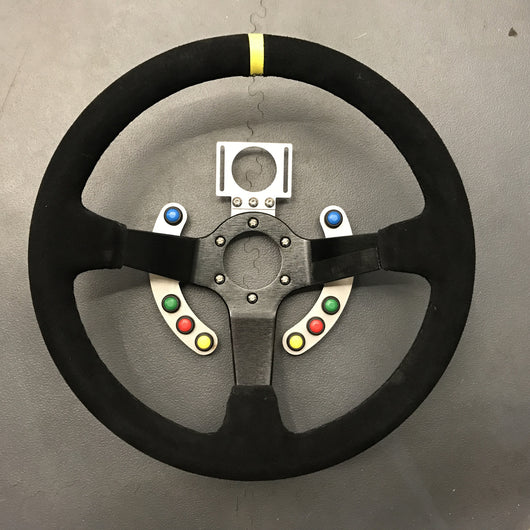

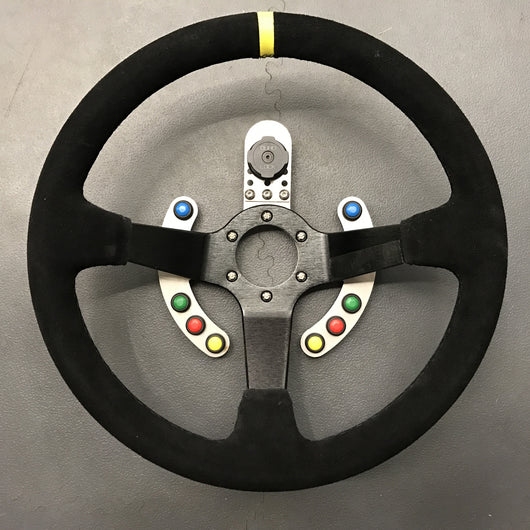

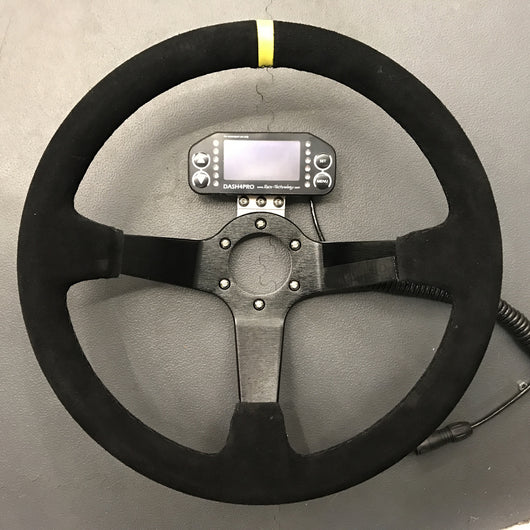

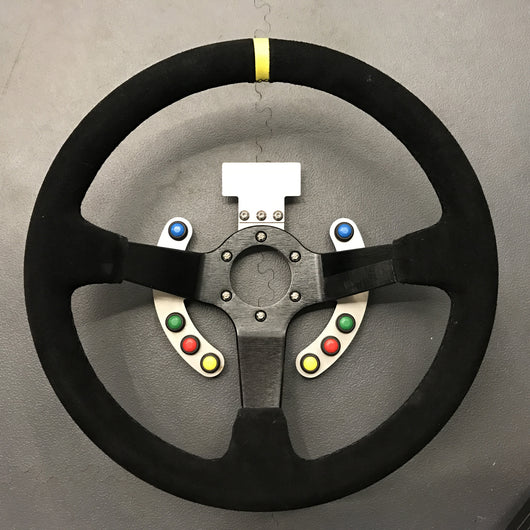

The most common configuration is to have a dash mounted to the top and either 2x side button mounts (3 spoke wheels) or 1x bottom button mount (2 poke wheels).

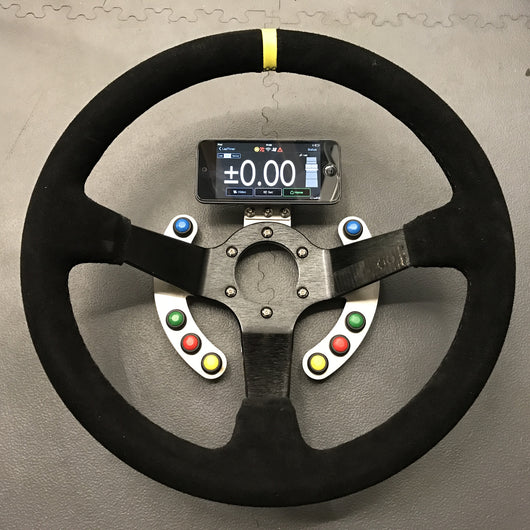

**FOR STEERING WHEELS WITH NO (FLAT WHEEL) OR VERY LOW 'DISH' (Approx. 50mm OR LESS)** YOU WILL ALSO NEED OUR 3MM HUB SPACER FOR BOLT HEAD CLEARANCE (IF YOU WISH TO USE THE SIDE OR BOTTOM BUTTON MOUNTS). THIS IS NOT NEEDED IF YOU ONLY INTEND ON USING THE TOP MOUNT FOR A DASH/DISPLAY/PHONE ETC.

3mm thick in Raw Stainless Steel

Our Modular Steering Wheel Components are Stainless Steel (raw finish) interchangeable components to facilitate the mounting of displays / buttons / dash / laptimers / shiftlights.

For more information click here

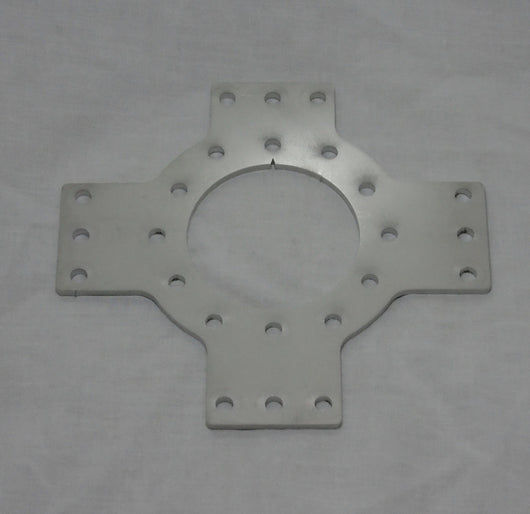

Please note that this item is the one in the first picture only, please see other listings for accessories/add-ons/buttons etc. in the other pictures.
